Xinyuan XYC70WT Wheel Loader China Digging Excavators Machine

Xinyuan XYC70WT Wheel Loader China Digging Excavators Machine

Hotline:

+86 189 5996 9800

Product inquiry

Related products

Product Description

Basic Info.

Model NO.	XYC70WT	Drive Type	Internal Combustion Drive
Bucket Capacity	0.25-0.4m³	Size	Small-Scalo
Certification	ISO9001:2000,ISO14001	Condition	New
Machine Weight	6665kg	Engine	YUCHAI
Rated Power	48KW	Rated Speed	2200rpm
Max Digging Force	30kn	Max travelSpeed	30km/h
transport Package	Nude Packing	Specification	5775mm2010mm2845mm
trademark	Xinyuan	Origin	China
HS Code	8429521100	Production Capacity	10000 Pieces/Year

Product Description

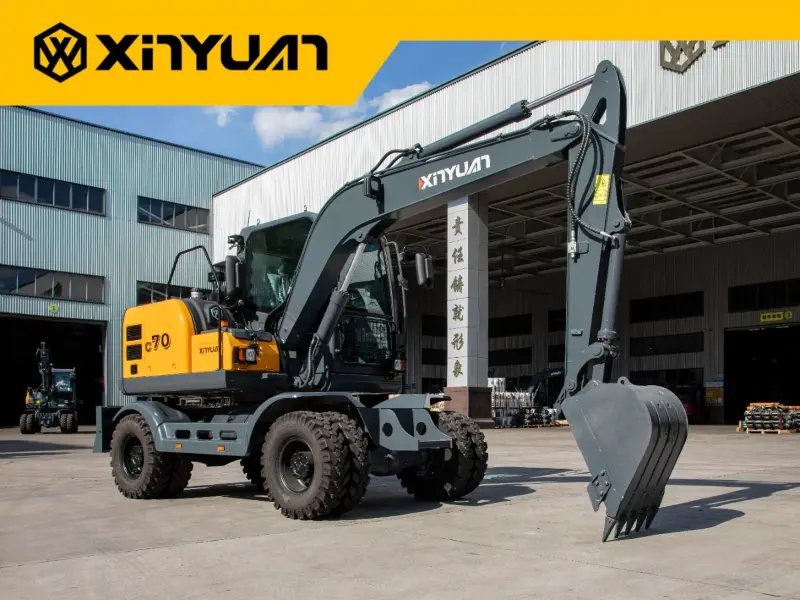

Independently developed and manufactured by Xinyuan Heavy Industries, the C70W series new generation full hydraulic wheeled excavators feature proprietary intellectual property rights and many advanced technologies, high quality and high cost performance.

C70W full hydraulic wheel excavator, based on years of design and manufacturing, our company has implemented a new design concept and upgraded many details, combining many advantages to create a cost-effective product. Our company has independent intellectual property rights of the whole vehicle and more than 80 technical patents, it has comprehensive performance in the leading position of this industry.

Intelligent Control System

The whole vehicle has an efficient intelligent control system, convenient operation, improved safety performance, and improved maintainability.

Large and Stable Chassis

Our self-developed strengthened front and rear axles, four-wheel independent wheel hydraulic brakes, reinforced super wear-resistant excavator tires, lower frame assembled guardrails and mudguards.

Comfortable Driving and Operating Cab

The cab is equipped with multi-functional full color high definition display, double-track suspension seat and multi point three dimensional air outlet. With spacious interior construction, the driver has a large space for effective movement. Large glass design across the board, with wide visibility and small blind spots. The front intelligent instrument panel has rich operation information display. Ergonomic layout of the operating device, long hours of operation without fatigue. Equipped with heating and cooling air conditioner, creating a more comfortable operating environment. There are electronic throttle knob, cigarette lighter, storage compartment, storage net pocket and other practical configurations, which are in line with the safety standards of hydraulic excavator operating room, equipped with fire extinguishers, escape hammer etc.

Multi Dimensional Safety Design

C70W is equipped with enlarged rear view mirror, minimizing the blind spot. There is also an independent light control system. Body reflective sticker design, front and rear driving, operating warning lights.

Convenient Maintenance

The cover can be opened in a large area, and the maintenance items are designed in a uniform window. Equipped with tool box, grease bucket, external air filter.

Safety

The side of the cab is equipped with large size glass, so the driver has a better side view. The whole vehicle is upgraded with light alarm system for safe driving. This model is equipped with front and rear cameras, which ensure safer driving and operating.

Environmentally Friendly

Keep exhaust emission in line with our country's Emission Standards, the engine is environmentally friendly.

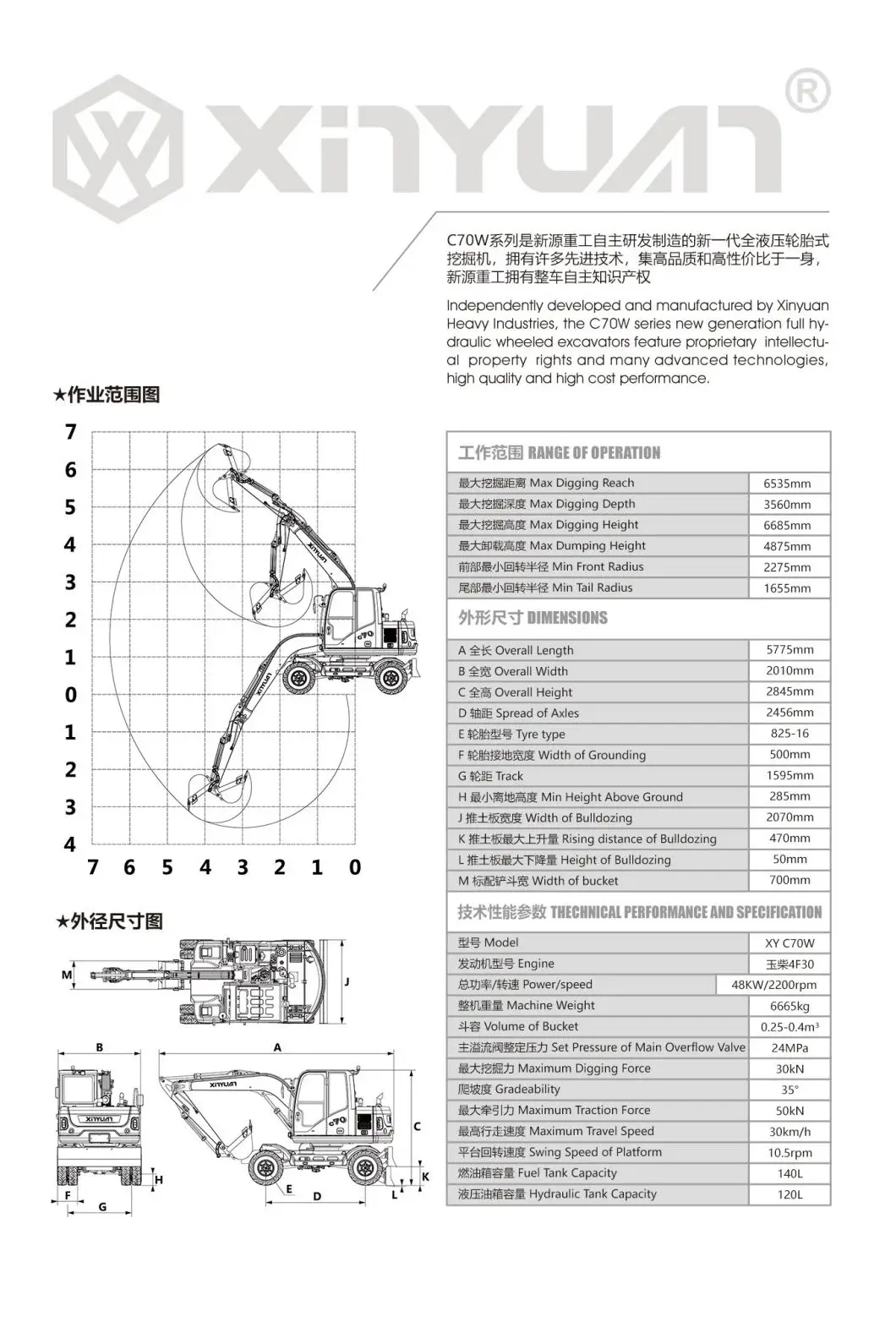

SPECIFICATIONS
RANGE OF OPERATION	Max Digging Reach	6535mm
	Max Digging Depth	3560mm
	Max Digging Height	6685mm
	Max Dumping Height	4875mm
	Min Front Radius	2275mm
	Min Tail Radius	1655mm
DIMENSIONS	Overall Length	5775mm
	Overall Width	2010mm
	Overall Height	2845mm
	Wheel Base	2456mm
	Tyre Type	825-16
	Width of Grouding	500mm
	track	1595mm
	Min Ground Clearance	285mm
	Width of Bulldozing	2070mm
	Rising distance of Bulldozing	470mm
	Height of Bulldozing	50mm
	Width of Bucket	700mm
TECHNICAL PARAMETERS	Model	XYC70WT
	Engine	YUCHAI 4F30
	Rated Power	48KW
	Rated Speed	2200rpm
	Machine Weight	6665kg
	Volume of Bucket	0.25-0.4m³
	Set Pressure of Main Overflow Valve	24Mpa
	Max Digging Force	30kn
	Gradeability	35°
	Max traction Force	50kn
	Max travel Speed	30km/h
	Swing Speed of Platform	10.5rpm
	Fuel Tank Capacity	140L
	Hydraulic Tank Capacity	120L

Fujian Xinyuan Heavy Industries Co.,Ltd. was established in 1990, is a Leading and professional wheel excavator manufacturer in China. We specialize in designing and manufacturing wheel excavators for more than 30 years.

Our factory is located in Quanzhou China, covering an area of 60,000 square meters, we now have more than 300 employees and keep expanding. Our annual sales are above 200 millions.

We have our own trademark and hundreds of wheel excavator design patents and lots of single item sales champions in China. Our products comply with standard Chinese and International quality standards and are highly welcomed and appreciated in both domestic and many countries around the world. We have comprehensive after-sale service, including one year warranty, spare parts supply and maintenance.

If you are interested in any of our products please feel free to discuss with us. We sincerely hope to establish successful long term mutually trading relationship with you in the near future. If you are looking for wheel excavators, Xinyuan Heavy Industries is your best choice!
