|Model NO.||XYC75WYT||Drive Type||Internal Combustion Drive|
|Rated Power||50KW||Rated Speed||2200rpm|
|Max Digging Force||30kn||Max travel Speed||28km/h|
|transport Package||Nude Packing||Specification||6005mm*1950mm*2845mm|
|HS Code||8429521100||Production Capacity||10000 Pieces/Year|

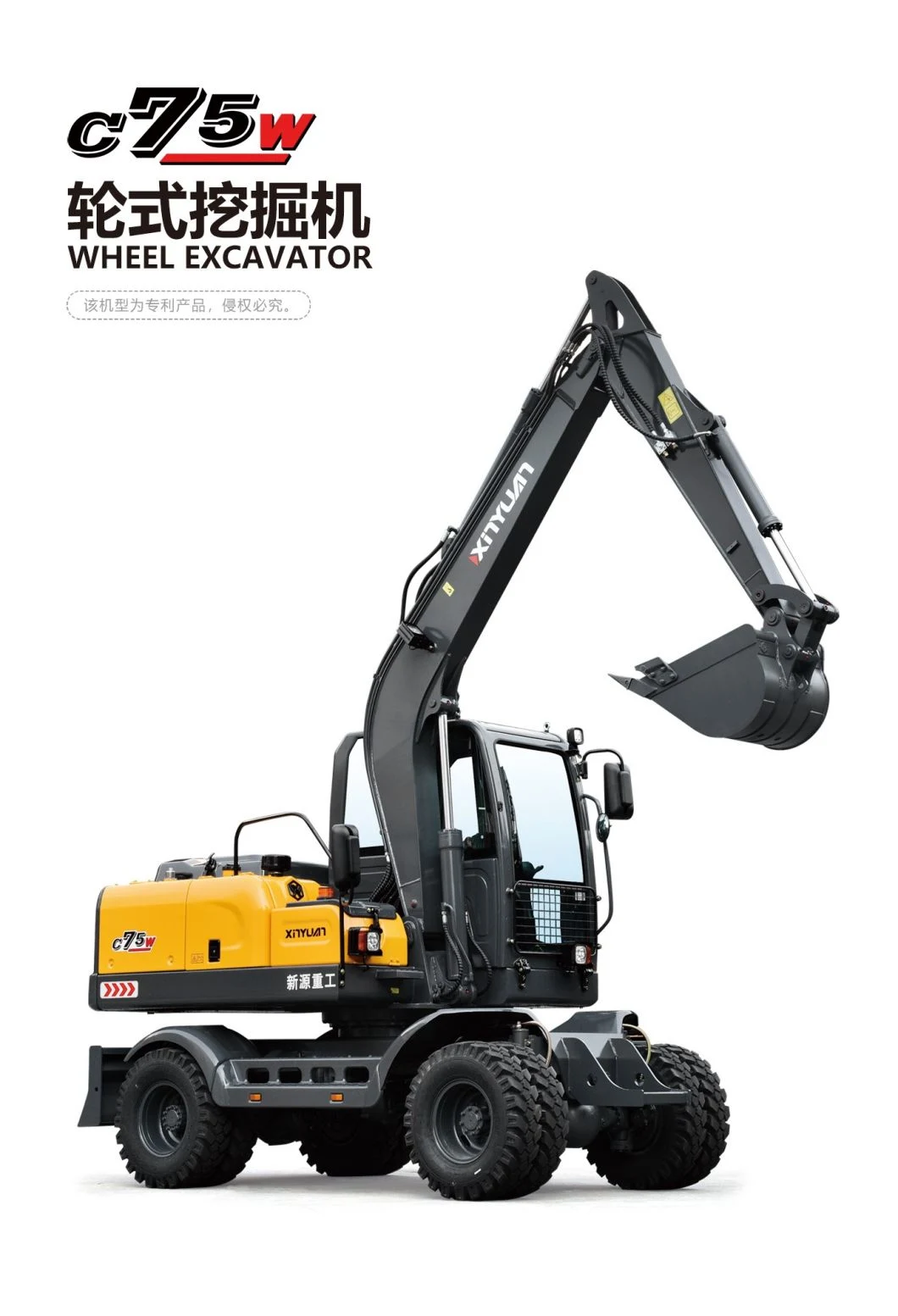

Independently developed by Xinyuan Heavy Industries, the C75W series new generation wheeled hydraulic excavators feature new design concept and integrate multiple advantages, which leads the industry in terms of its comprehensive performance.
Fully Upgraded Engine System
With air blowing parallel radiator, equipped with open hydraulic system, more mature technology, more stable performance, stronger anti-pollution ability, lower failure rate, more convenient maintenance and lower energy consumption.
High Working Efficiency
The high degree of original parts fit ensures the fast and smooth operation of various compound actions, whether it is high load operation or fine operation, it has excellent working performance performance.
Long Continuous Operation Time
New high capacity fuel tank with stronger and cleaner tank. Increased capacity hydraulic fuel tank is also available.
Our self developed stamping exterior parts, better passability, and stronger grip tires.
Brand New Loading Platform
Our company has developed a new upper frame with double C-type large section side beams and optimized design slewing support.
Luxurious and Comfortable Operating Cab
The cab is equipped with multi-functional full color high definition display screen, which is richer in content information display and can be reached at a glance to understand the vehicle status clearly and intuitively. Upgraded dual rail suspension seat, handle and seat can be adjusted individually to adapt to the different operating habits of drivers of different body types. At the same time, the seat feels softer and more comfortable, and it is not easy to get tired after a long time driving. Multi point three dimensional air outlet, can quickly adjust the temperature.
Equipped with heating and cooling air conditioner, creating a more comfortable operating environment. There are electronic throttle knob, cigarette lighter, storage compartment, storage net pocket and other practical configurations, which are in line with the safety standards of hydraulic excavator operating room, equipped with fire extinguishers, escape hammer etc.
The cover can be opened in a large area, and the maintenance items are designed in a unified window, so that the daily maintenance items can be done in one step by just flicking the switch.
Comprehensive Safety Design
The whole vehicle is upgraded with perfect lighting control system, which makes the driving operation safer. With a driving alarm system, when turning and reversing, the standard car alarm system can prompt others to pay attention to find timely avoidance, effectively improving driving safety. Highly visible LED tail lights and independent reverse lights design, no matter day and night have a high recognition. The rearview mirror is enlarged and equipped with independent side mirrors to eliminate blind spots and maximize visibility.
Keeping the exhaust emission in line with our emission standards, the engine is environmentally friendly.
|RANGE OF OPERATION||Max Digging Reach||6540mm|
|Max Digging Depth||3365mm|
|Max Digging Height||6657mm|
|Max Dumping Height||4860mm|
|Min Front Radius||2315mm|
|Min Tail Radius||1840mm|
|Width of Grouding||430mm|
|Min Ground Clearance||230mm|
|Width of Bulldozing||1910mm|
|Rising distance of Bulldozing||390mm|
|Height of Bulldozing||45mm|
|Width of Bucket||700mm|
|Engine||YUCHAI 4FA/YUCHAI 4DK|
|Volume of Bucket||0.25-0.4m³|
|Set Pressure of Main Overflow Valve||22Mpa|
|Max Digging Force||30kn|
|Max traction Force||50kn|
|Max travel Speed||28km/h|
|Swing Speed of Platform||10.5rpm|
|Fuel Tank Capacity||130L|
|Hydraulic Tank Capacity||135L|
Fujian Xinyuan Heavy Industries Co.,Ltd. was established in 1990, is a Leading and professional wheel excavator manufacturer in China. We specialize in designing and manufacturing wheel excavators for more than 30 years.
Our factory is located in Quanzhou China, covering an area of 60,000 square meters, we now have more than 300 employees and keep expanding. Our annual sales are above 200 millions.
We have our own trademark and hundreds of wheel excavator design patents and lots of single item sales champions in China. Our products comply with standard Chinese and International quality standards and are highly welcomed and appreciated in both domestic and many countries around the world. We have comprehensive after-sale service, including one year warranty, spare parts supply and maintenance.
If you are interested in any of our products please feel free to discuss with us. We sincerely hope to establish successful long term mutually trading relationship with you in the near future. If you are looking for wheel excavators, Xinyuan Heavy Industries is your best choice!
1. What are your main products?
A: Wheel excavators. We specialize in designing and manufacturing wheel excavators for more than 30 years.
2: Are you a manufactuer or trading company?
A: We are a manufactuer.
3: What kind terms of payment can be accepted?
A: For terms of payment, We accept T/T.
4: What certificates are available in Machinery?
A: We currently have ISO9001, ISO14001, EAC certificates.
5: What about the delivery time?
A: Normally 7-15 days after receiving the deposit. In case of force majeure, time will be extended.
6: What about the Minimum Order Quantity?
A: MOQ is 1 pcs.
7: What is your port for export shipping?
A: Xiamen port
