|Model No.||XYB75SWXT||Drive Type||lnternal Combustion Drive|
|Rated Power||48KW||Rated Speed||2200rpm|
|Max Dlgglng Force||35kn||Max travel Speed||30km/h|
|transport Package||Nude Packing||Specification||6075mm*1950mm*2845mm|
|HS Code||8429521100||Productlon Capacity||10000 Pleces/Year|

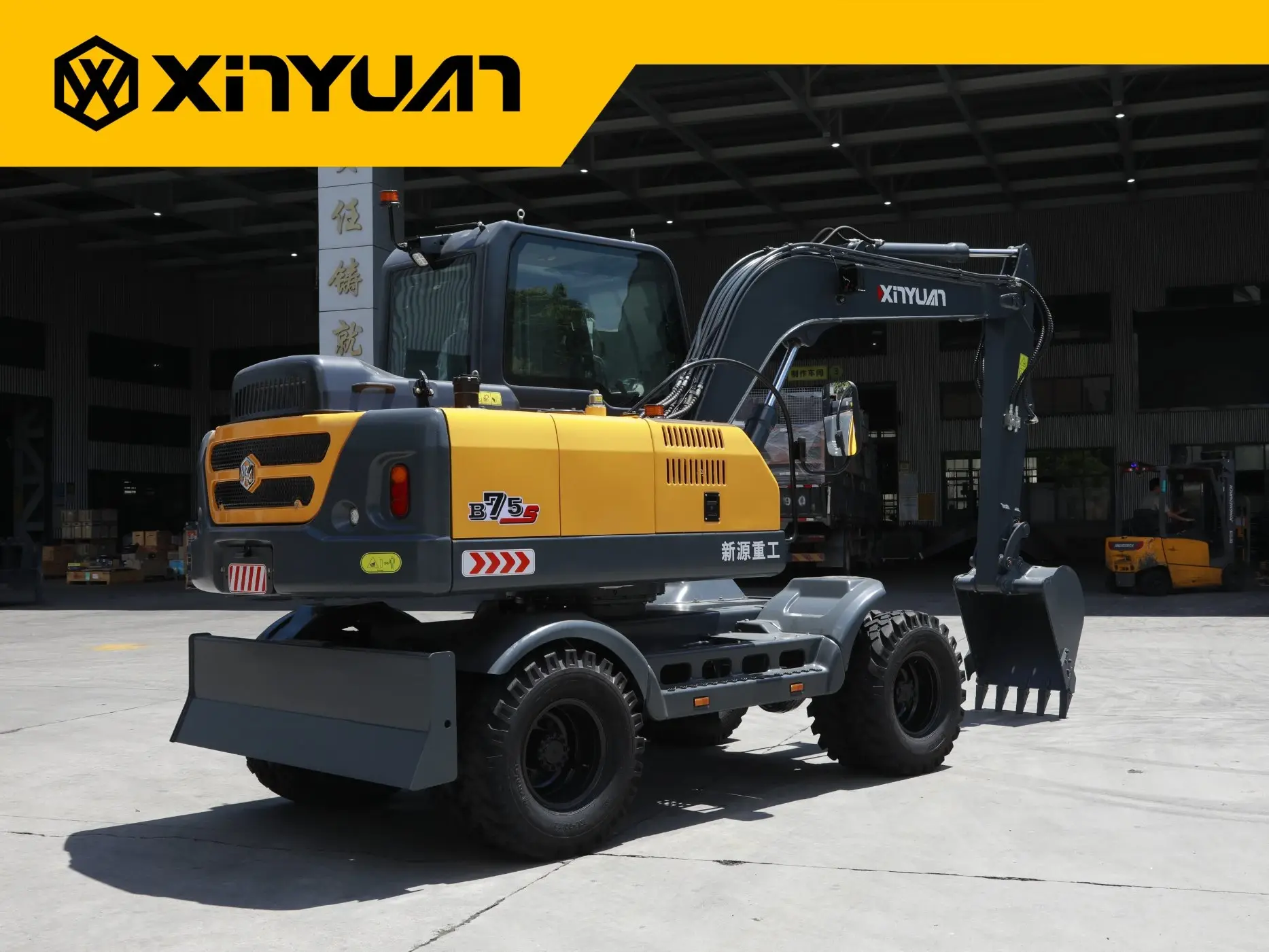

B75S is positioned at economical type mechanical transmission wheel excavator, is a new generation developed and manufactured by Xinyuan Heavy Industries after market research and analysis, combined with customers' needs, and improved and upgraded on the basis of B75W series products, implementing our brand's new design concept, with more excellent performance, appearance, comfort, durability and safety.
Xinchai engine and direct-injection provides a stronger power for the excavator.
Unique Blowing Cooling System
B75S uses the unique air blowing cooling system, which applies the principle of fluid dynamics and can discharge heat from the rear of the cockpit to keep the engine and hydraulic system in the best working condition at all times. High temperature airflow is directed to the rear of the fuselage for better driving comfort.
Compact Machine Size
B75S is more compact in size and takes up less space when operating, and has an unparalleled advantage in loading operations because of its large operating range.
B75S chassis specifications are larger, the wheelbase is larger, and the wheel-end dual-tire configuration can provide strong support for the whole machine. Whether driving at high speed or steering, the stability is better. Equipped with unique engineering tires, the grip performance is stronger, more wear-resistant and resistant.
Comfortable Large Cab
The B75S has a spacious interior structure with more space for the driver to move around effectively. The full-size glass design provides a wide field of vision and fewer blind spots.
The ergonomic layout of the operating device makes long time operation less fatiguing. Upgraded front intelligent instrument panel with full-color LCD screen has rich operation information display. Equipped with heating and cooling air conditioner, creating a more comfortable operating environment. There are electronic throttle knob, cigarette lighter, storage compartment, storage net pocket and other practical configurations, which are in line with the safety standards of hydraulic excavator operating room, equipped with fire extinguishers, escape hammer etc.
B75S has higher safety. The side of the cab is equipped with large size glass, so the driver has a better side view. The whole vehicle is upgraded with light alarm system for safe driving.
Keep exhaust emission in line with our country's Emission Standards, the engine is environmentally friendly.
|RANGE OF OPERATION||Max Digging Reach||6560mm|
|Max Digging Depth||3370mm|
|Max Digging Height||6660mm|
|Max Dumping Height||4860mm|
|Min Front Radius||2325mm|
|Min Tail Radius||1860mm|
|Width of Grouding||430mm|
|Min Ground Clearance||230mm|
|Width of Bulldozing||1910mm|
|Rising distance of Bulldozing||390mm|
|Height of Bulldozing||45mm|
|Width of Bucket||700mm|
|Volume of Bucket||0.25-0.4m³|
|Set Pressure of Main Overflow Valve||24Mpa|
|Max Digging Force||35kn|
|Max traction Force||40kn|
|Max travel Speed||30km/h|
|Swing Speed of Platform||11rpm|
|Fuel Tank Capacity||130L|
|Hydraulic Tank Capacity||130L|
Fujian Xinyuan Heavy Industries Co.,Ltd. was established in 1990, is a Leading and professional wheel excavator manufacturer. We specialize in designing and manufacturing wheel excavators for more than 30 years.
Our factory is located in Quanzhou China, covering an area of 60,000 square meters, we now have more than 300 employees and keep expanding. Our annual sales are above 200 millions.
We have our own trademark and hundreds of wheel excavator design patents and lots of single item sales champions in China. Our products comply with standard Chinese and International quality standards and are highly welcomed and appreciated in both domestic and many countries around the world. We have comprehensive after-sale service, including one year warranty, spare parts supply and maintenance.
If you are interested in any of our products please feel free to discuss with us. We sincerely hope to establish successful long term mutually trading relationship with you in the near future. If you are looking for wheel excavators, Xinyuan Heavy Industries is your best choice!
1. What are your main products?
A: Wheel excavators. We specialize in designing and manufacturing wheel excavators for more than 30 years.
2: Are you a manufactuer or trading company?
A: We are a manufactuer.
3: What kind terms of payment can be accepted?
A: For terms of payment, We accept T/T.
4: What certificates are available in Machinery?
A: We currently have ISO9001, ISO14001, EAC certificates.
5: What about the delivery time?
A: Normally 7-15 days after receiving the deposit. In case of force majeure, time will be extended.
6: What about the Minimum Order Quantity?
A: MOQ is 1 pcs.
7: What is your port for export shipping?
A: Xiamen port
