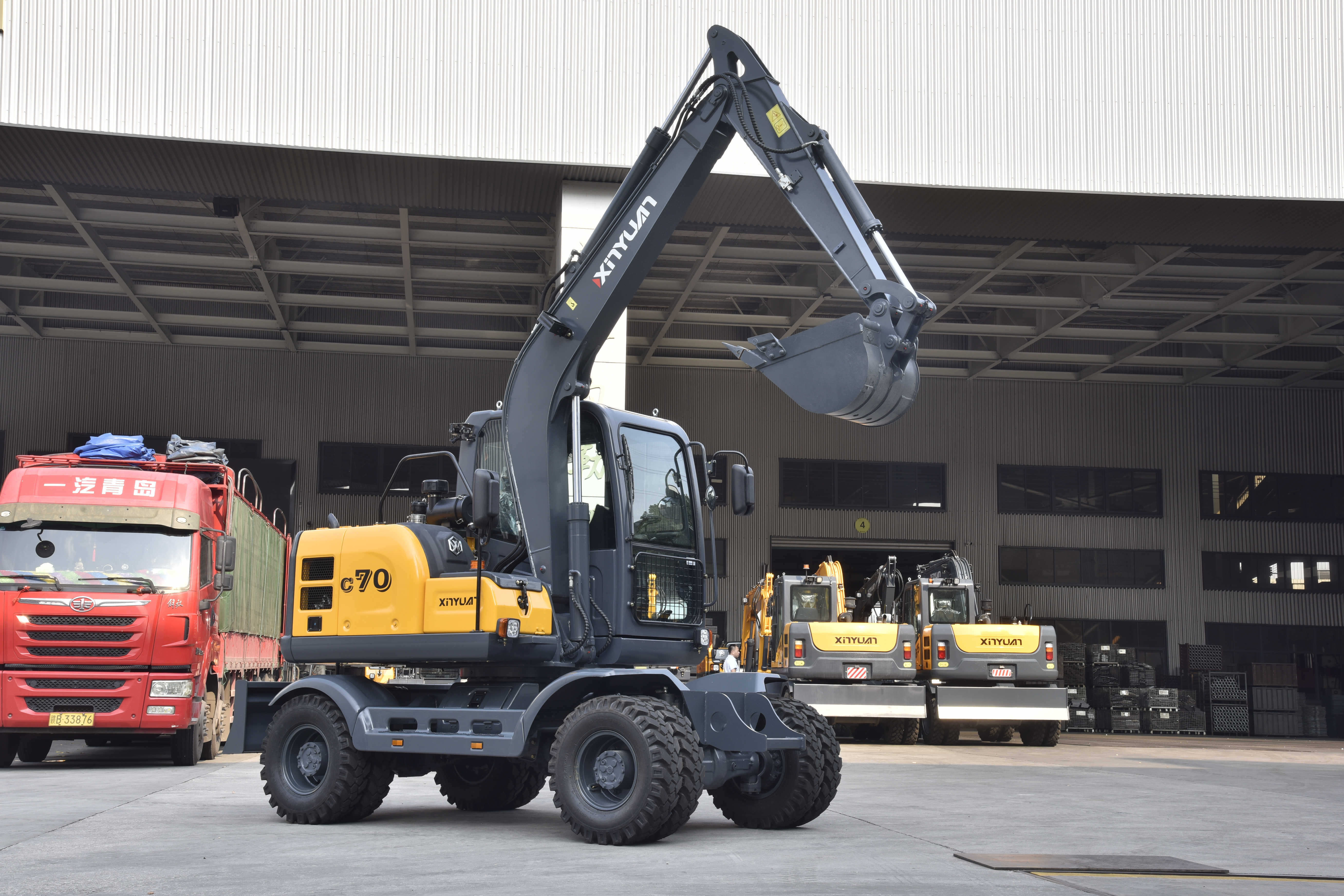

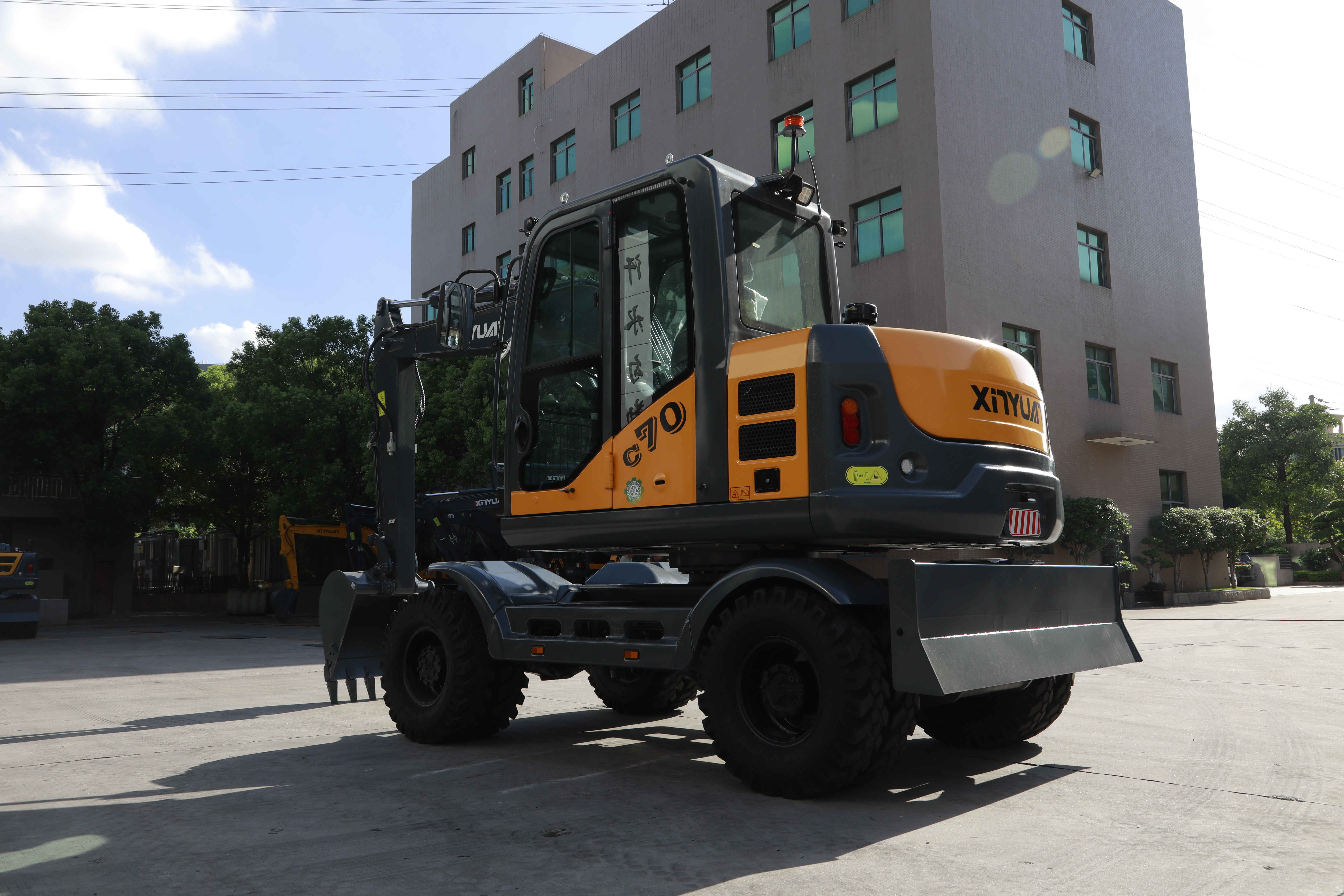

XYC70WTJ Wheel Excavator with Clamp Pipes Digging Machine China Factory

Flexible small wheeled excavator. Operating Weight: 7ton. Engine Model: YUCHAI 4F30. Rated Power: 48kw/2200rpm. Bucket: 0.2m³

Hotline:

+86 189 5996 9800

Product inquiry

Related products

Product Description

Basic Info.

Model No.	XYC70WTJ	Drive Type	Internal Combustion Drive
Bucket Capacity	0.2m³	Size	Small-Sized
Certificates	CE, ISO9001:2015, ISO14001:2015	Condition	New
Machine Welght	6665KG	Engine	YUCHAI
Power/speed	48KW/2200rpm	Max Digging Force	50kn
Max travel Speed	30km/h	Transport Package	Nude Packing
Specificatlon	5775mm2010mm2845mm	Trademark	Xinyuan
Origin	China	Production Capacity	10000 Pieces/Year

Product Description

Independently developed and manufactured by Xinyuan Heavy Industries, the C70W series new generation full hydraulic wheeled excavators feature proprietary intellectual property rights and many advanced technologies, high quality and high cost performance.

XYC70WTJ full hydraulic wheel excavator, based on years of design and manufacturing, our company has implemented a new design concept and upgraded many details, combining many advantages to create a cost-effective product. Our company has independent intellectual property rights of the whole vehicle and more than 80 technical patents, it has comprehensive performance in the leading position of this industry.

Intelligent Control System

The whole vehicle has an efficient intelligent control system, convenient operation, improved safety performance, and improved maintainability.

Large and Stable Chassis

Our self-developed strengthened front and rear axles, four-wheel independent wheel hydraulic brakes, reinforced super wear-resistant excavator tires, lower frame assembled guardrails and mudguards.

Comfortable Driving and Operating Cab

The cab is equipped with multi-functional full color high definition display, double-track suspension seat and multi point three dimensional air outlet. With spacious interior construction, the driver has a large space for effective movement. Large glass design across the board, with wide visibility and small blind spots. The front intelligent instrument panel has rich operation information display. Ergonomic layout of the operating device, long hours of operation without fatigue. Equipped with heating and cooling air conditioner, creating a more comfortable operating environment. There are electronic throttle knob, cigarette lighter, storage compartment, storage net pocket and other practical configurations, which are in line with the safety standards of hydraulic excavator operating room, equipped with fire extinguishers, escape hammer etc.

Multi Dimensional Safety Design

XYC70WTJ is equipped with enlarged rear view mirror, minimizing the blind spot. There is also an independent light control system. Body reflective sticker design, front and rear driving, operating warning lights.

Convenient Maintenance

The cover can be opened in a large area, and the maintenance items are designed in a uniform window. Equipped with tool box, grease bucket, external air filter.

Safety

The side of the cab is equipped with large size glass, so the driver has a better side view. The whole vehicle is upgraded with light alarm system for safe driving. This model is equipped with front and rear cameras, which ensure safer driving and operating.

Environmentally Friendly

Keep exhaust emission in line with our country's Emission Standards, the engine is environmentally friendly.

SPECIFICATIONS
RANGE OF OPERATION	Max Digging Reach	6535mm
	Max Digging Depth	3560mm
	Max Digging Height	6685mm
	Max Dumping Height	4875mm
	Min Front Radius	2275mm
	Min Tail Radius	1655mm
DIMENSIONS	Overall Length	5775mm
	Overall Width	2010mm
	Overall Height	2845mm
	Wheel Base	2456mm
	Tyre Type	825-16
	Width of Grouding	500mm
	track	1595mm
	Min Ground Clearance	285mm
	Width of Bulldozing	2070mm
	Rising distance of Bulldozing	470mm
	Height of Bulldozing	50mm
	Width of Bucket	700mm
TECHNICAL PARAMETERS	Model	XYC70WTJ
	Engine	YUCHAI 4F30
	Rated Power	48KW
	Rated Speed	2200rpm
	Machine Weight	6665kg
	Volume of Bucket	0.2m³
	Set Pressure of Main Overflow Valve	24Mpa
	Max Digging Force	30kn
	Gradeability	35°
	Max traction Force	50kn
	Max travel Speed	30km/h
	Swing Speed of Platform	10.5rpm
	Fuel Tank Capacity	140L
	Hydraulic Tank Capacity	120L
